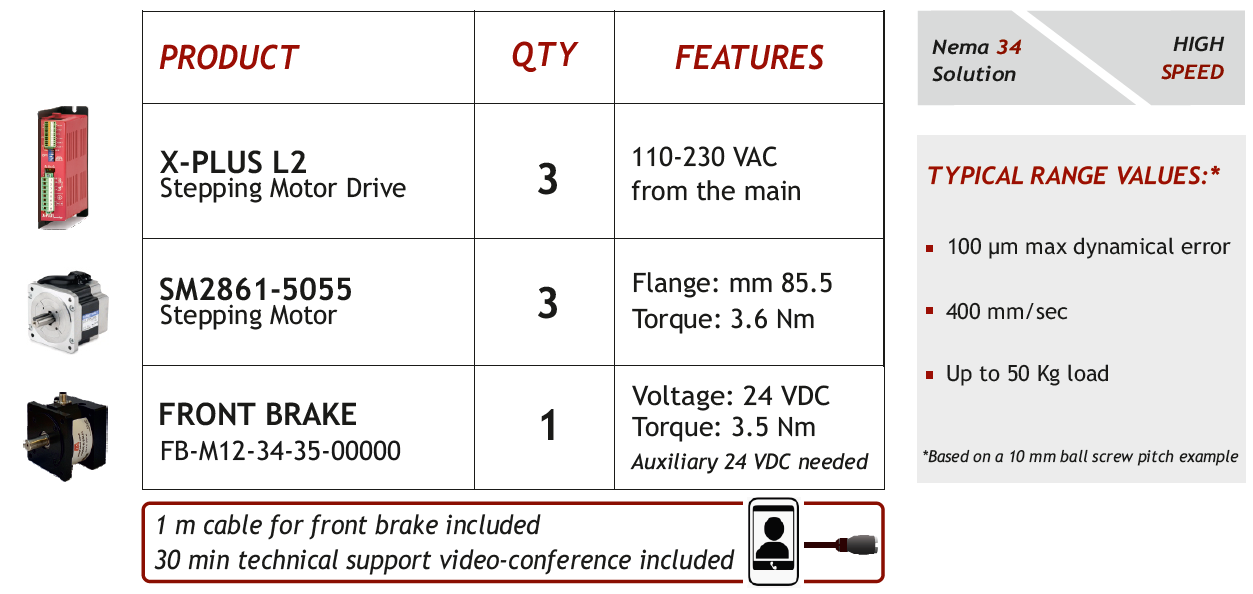

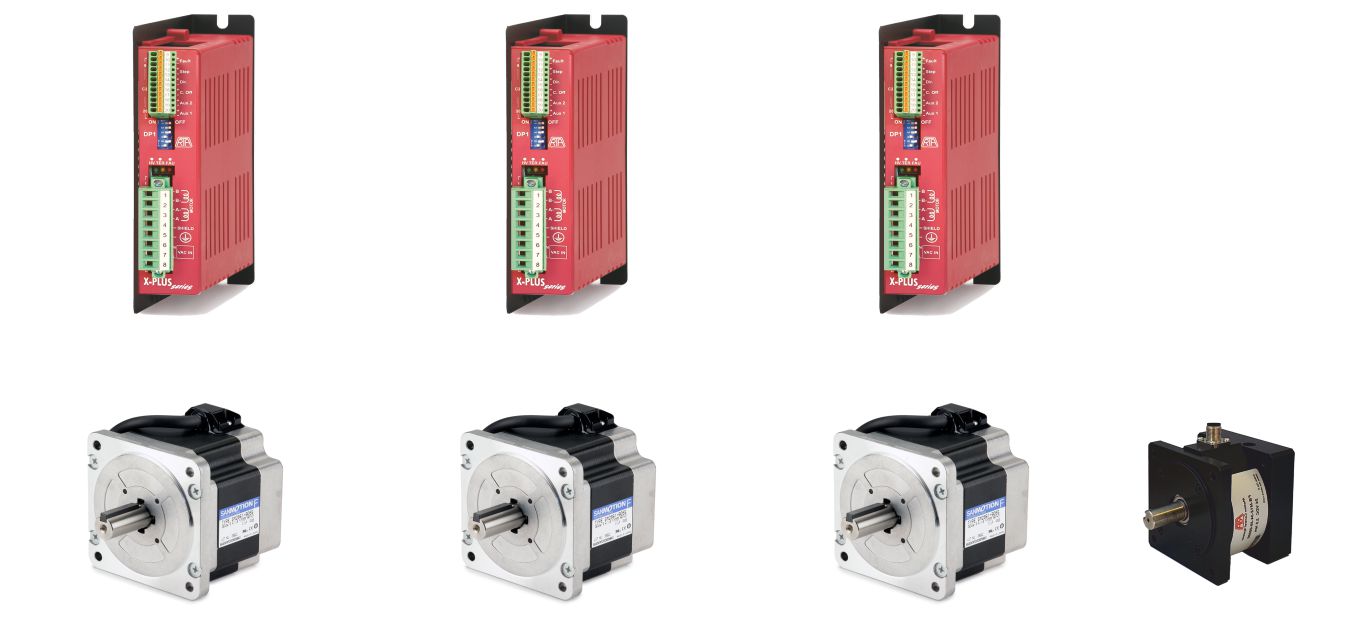

KIT CNC 01 ( 4X X-PLUS L2 + 3X SM 2861-5055 + 1X FB-M12-34-35 )

Introduction

►Power supply voltage up to 230 Vac: guarantee power and performance superior to integrated circuits
►Stepping motors with high torque: a torque / dimensions ratio of absolute value.
►30 minutes of technical telephone assistance included in the offer

TECHNICAL SPECIFICATIONS

Drive X-PLUS L2
► Version: drive housed in a metallic box 152 x 129 x 30 mm, equipped with plug-in connectors.
► Range of operating voltages: 110-230 VAC.
► Range of current: 2.4-4 Amp. Easy setting of values by means of dip-switch.
► Microstepping: 400, 500, 800, 1.000, 1.600, 2.000, 3.200 and 4.000 steps/revolution. Setting by means of dip-switch.
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Warranty: 24 months.

MOTOR SM 2861-5055
►Flange: 85.5 mm
►Holding torque: 360 Ncm
►Current: 2 A

FRONT BRAKE FB-M12-34-35-00000
►M12 Connector
►Holding torque: 3.5 Nm
►Easy mounting
