STEPPING MOTOR WITH ENCODER EM 3F3M-14D0

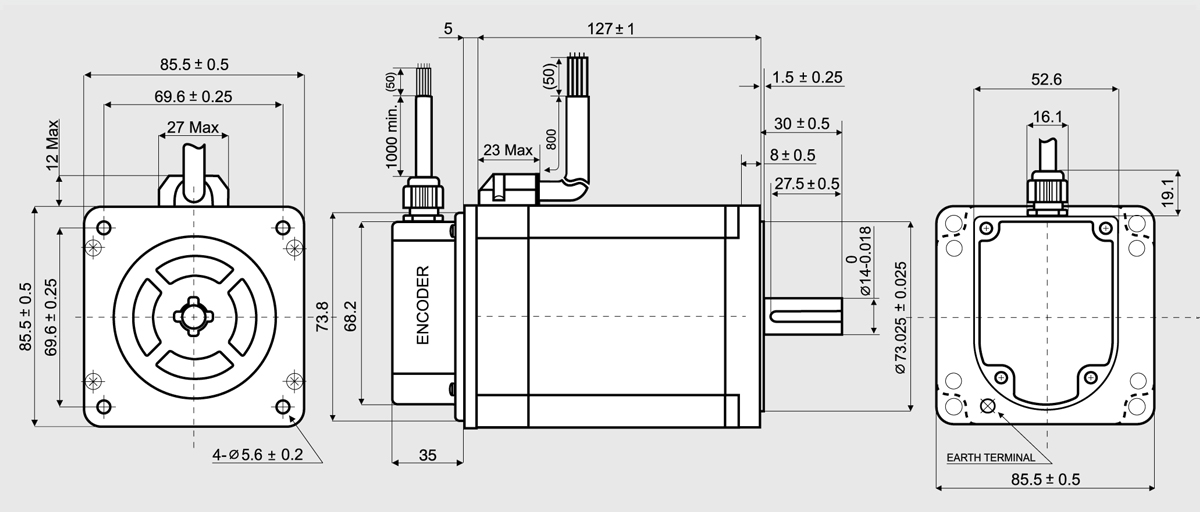

Stepping motor with Flange size 85.5 mm. Nema 34

Introduction

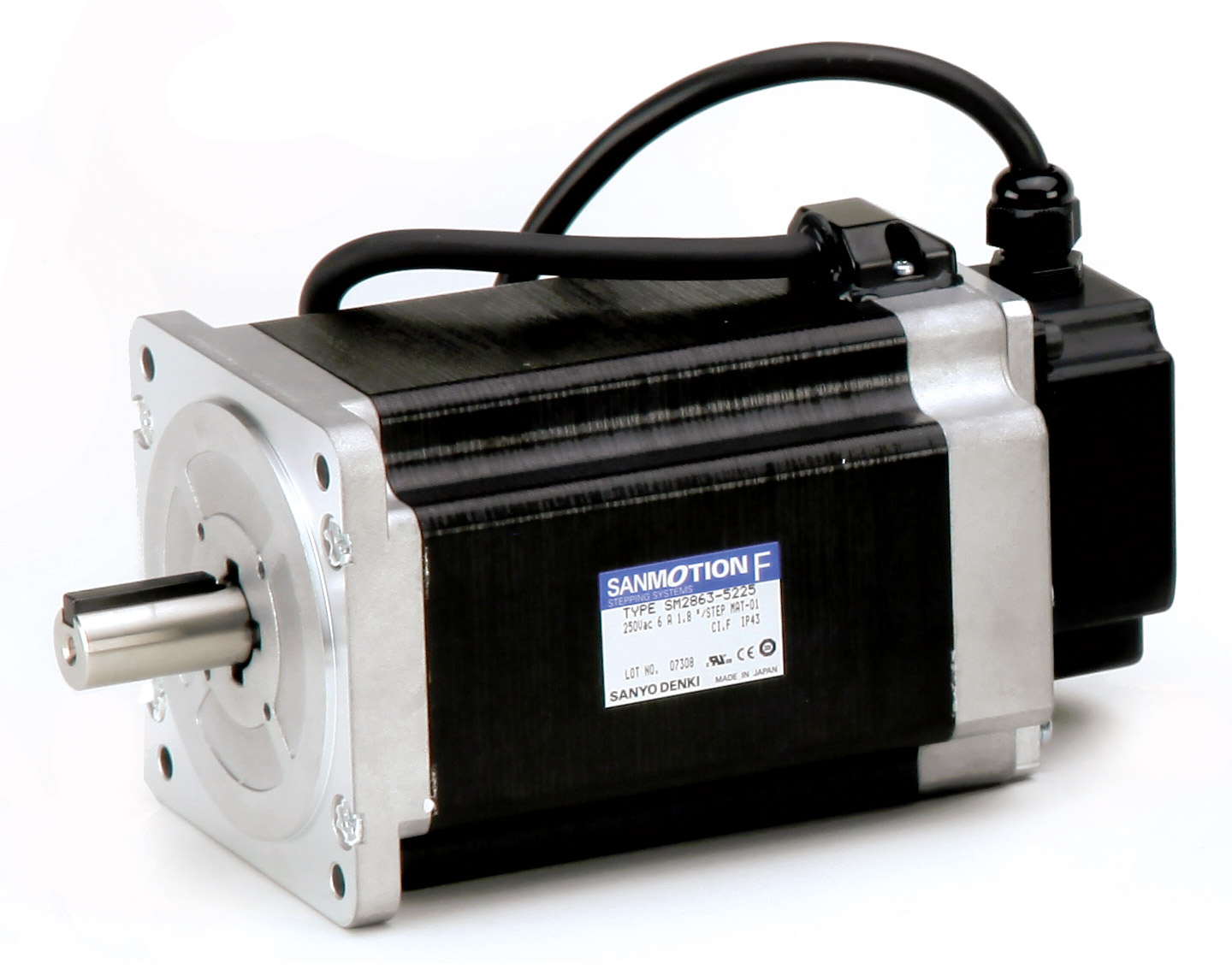

The stepping motor with encoder EM 3F2M-04D0 is characterized by SANYO DENKI stepping motor SM 2863-5126 flange size 85.5 mm. ( NEMA 34 ) with holding torque up to 920 Ncm and Encoder with standard signal: DIFFERENTIAL with a resolution of 400 CPR.
The connection cable to encoder side has a length of 1000 mm.
The connection cable to motor side has a length of 800 mm.

TECHNICAL SPECIFICATIONS

Stepping motor with encoder R.T.A. main features:

Standard signal: DIFFERENTIAL

Standard encoder resolution: 400 CPR

High torque Stepping motors guarantees a torque/dimensions ratio of absolute value

High flexibility in coupling with R.T.A. drives

All motors with encoder are mounted and tested by R.T.A.

SUGGESTED MOTOR/DRIVE COUPLING
