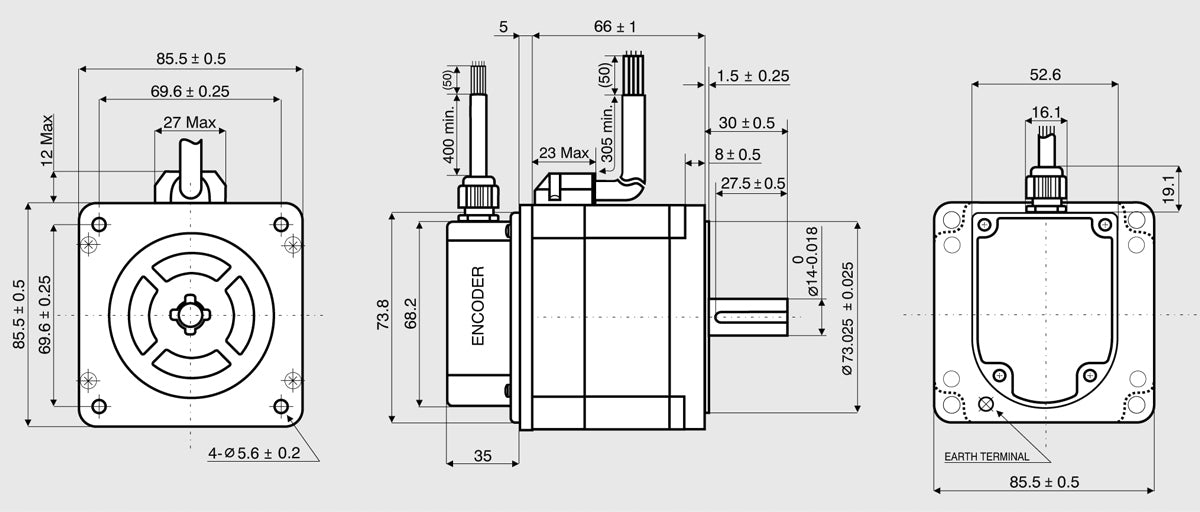

Technical sheet

MOT ENC EM 3F1H-04S0

Product code: EM3F1H04S0

The encoder motor EM 3F1H-04S0 consists of a SANYO DENKI SM 2861-5225 stepper motor with 85.5 mm flange (NEMA 34) with holding torque of 360 Ncm and an encoder with SINGLE ENDED output signal with resolution of 400 cycles/revolution.

Technical specifications:

  • Output signal: SINGLE ENDED
  • Standard encoder resolution: 400 cycles/revolution
  • High-torque stepper motors: provide excellent torque-to-size ratio
  • Maximum versatility in coupling with R.T.A. drivers.

All motors with encoders are assembled and tested by R.T.A.
