Introduction

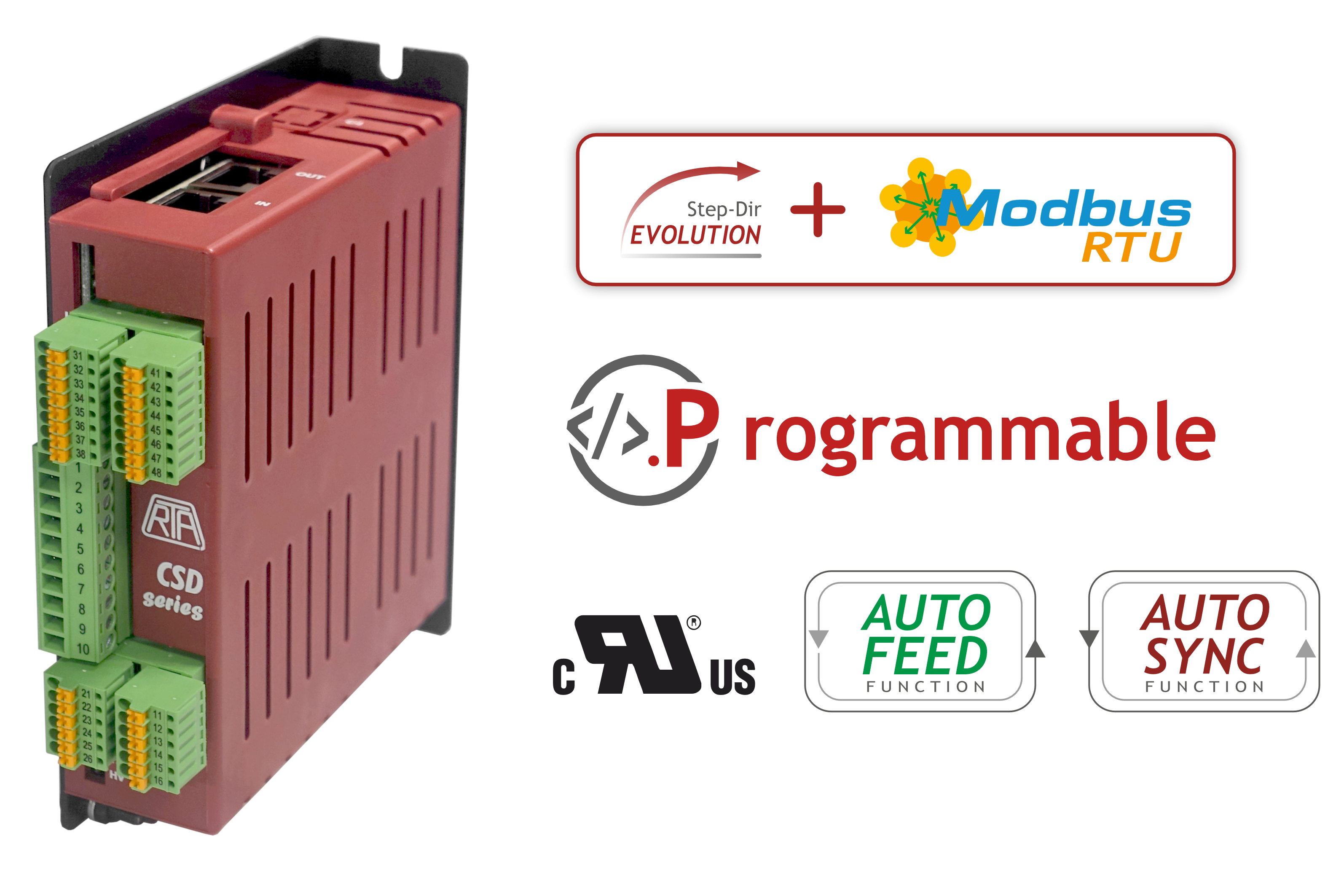

► New series bipolar microstep stepping motor drive with STO function.
► STEP&DIR, Analog Input, Modbus RTU RS-485 interface.
► Target: advanced applications requiring high precision, low noise, smoothness of movement and lower power consumption.

HIGHLIGHTS

► Embedded Auto-Sync function with encoder, featuring a closed loop positioning
► Embedded Auto-Feed function - Lower power consumption and heating
► STO [SIL3] function.
► Error Detection Monitor.
► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.
► .Programmable version available - for a complete modular solution with accuracy in every detail.

TECHNICAL SPECIFICATIONS

► Possibility to switch off motor current by means of STO function.
► Range of operating voltages: 24-85VDC.
► Automatic current reduction at motor standstill.
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
- Overtemperature protection with termal sensor
- Open motor / encoder phases
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Available in boxed version with plug-in connectors.
► Maximum compactness.
► Optoinsulated inputs to ensure best EM noise immunity.
► External fans not needed.
► Coupling with stepping motors rated for low/medium voltage.
► Warranty: 24 months.
