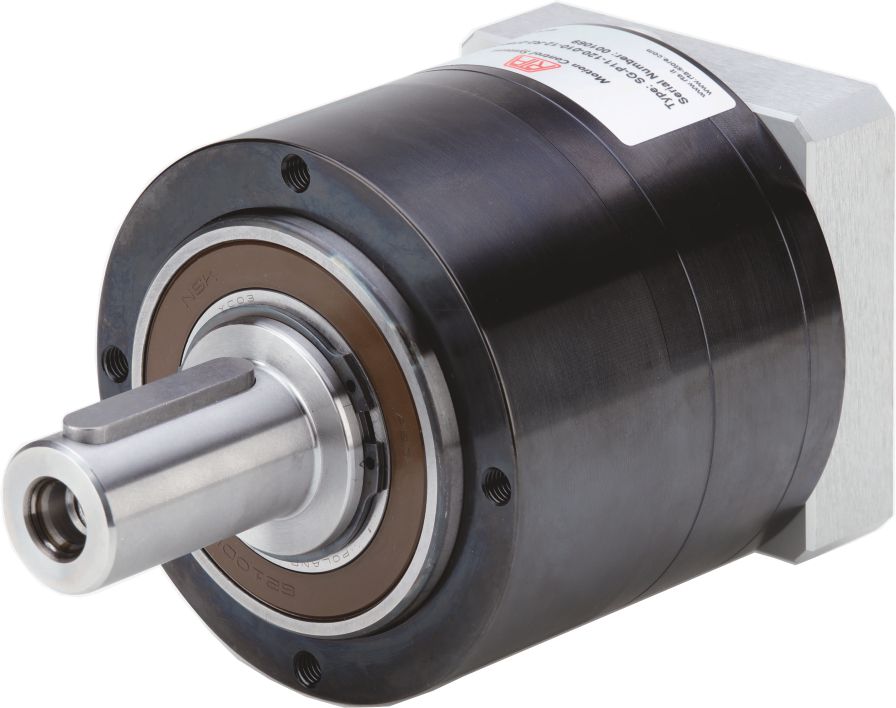

SG-P11-090-025-15-SM-2861-00000
SG-P11-090-025-15-SM-2861-00000

Introduction

The gearboxes proposed by RTA are all characterized by IP64 protection degree and are maded and tested in Italy.
The wide range of planetary gearboxes and all compatible motors are always a stock for a most specific requirements with short delivery times.

TECHNICAL SPECIFICATIONS

SG-P11-070-005-12-SM-286X-00000 planetary gearbox is characterized by flange size 85 mm., gear ratio 25 and rated output torque 43 Nm.
Suitable to be used in combination with the SANYO DENKI stepper motors NEMA 34.
