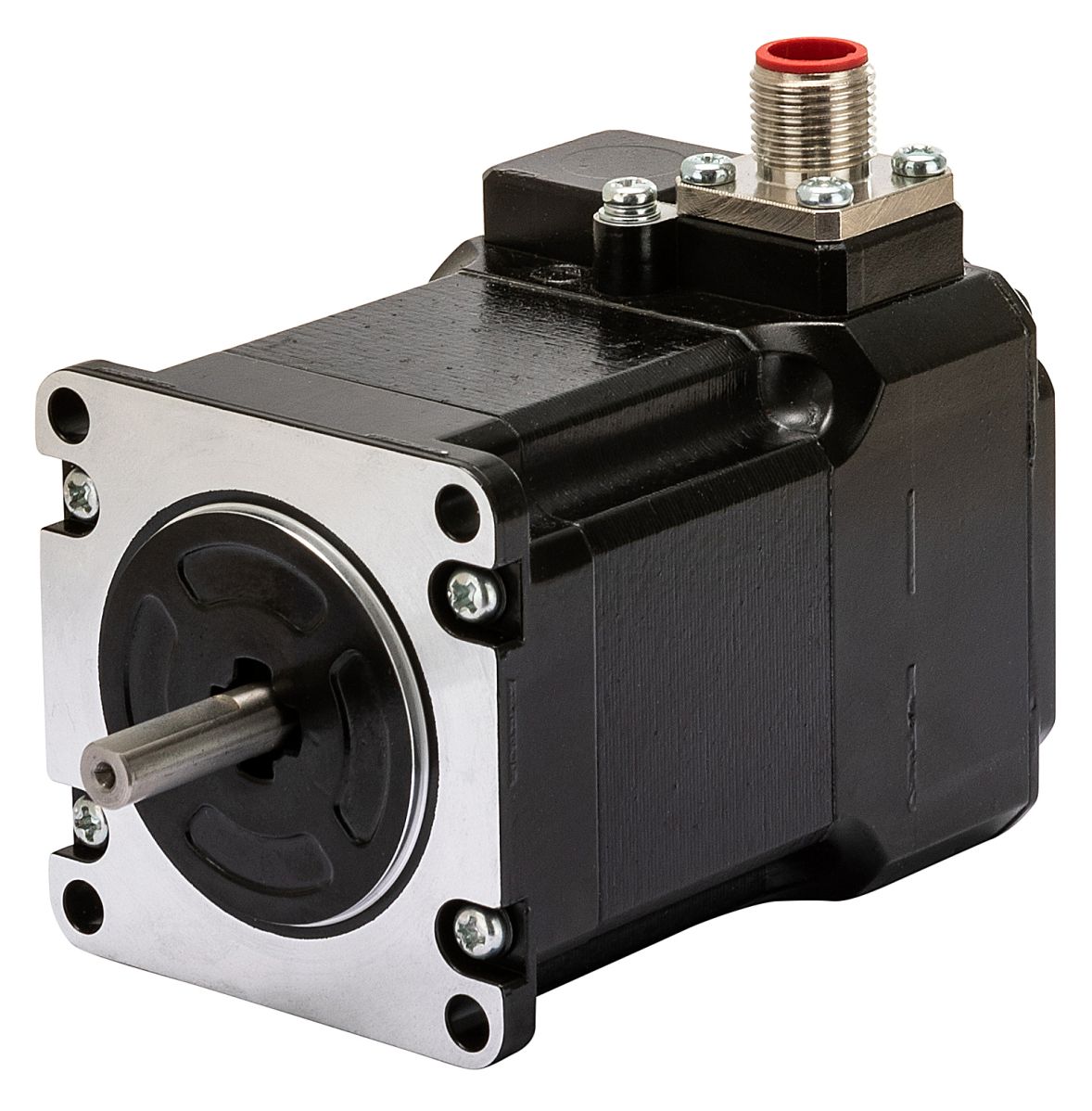

STEPPING MOTOR IP65 SP2563-5000
Flange size 56 mm. Nema 23

Introduction

SANYO DENKI stepping motors SP series with protection degree IP 65 have a higher resistance at dust & water and can be used in wet or dusty working environments.

  • Protection degree: IP 65 - Splash proof & dust proof.
  • M12 IP65 connector on the motor for easy wiring.
  • High performance in terms of torque and power with compact size.
  • Coupling to drives with power supply directly from the main.
  • Class F insulation.
  • CE, UL and CSA marking.

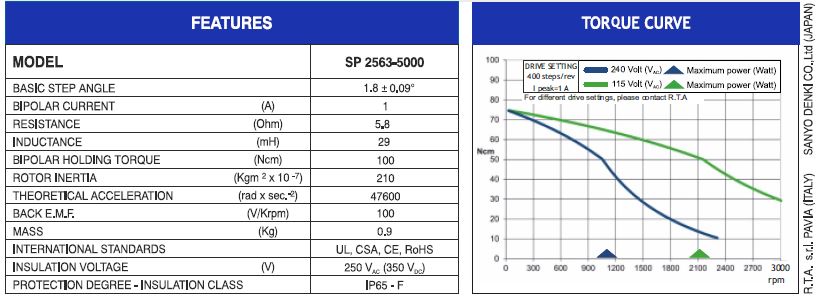

  • TECHNICAL SPECIFICATIONS

    SANYO DENKI stepping motors SP2563-5000 is characterized by flange size 56 mm. ( NEMA 23 ) and guarantees high performance with holding torque up to 100 Ncm.
    Suggested R.T.A. driver: X-PLUS L2.
