Introduction

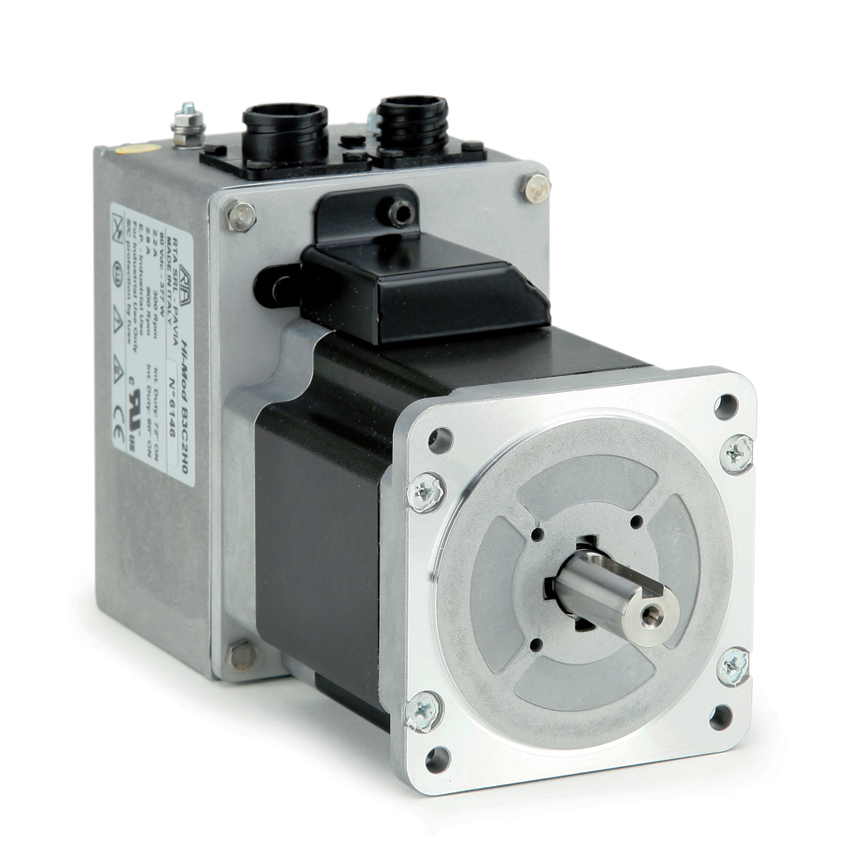

► Series of stepper motors with integrated ministep bipolar chopper drives equipped with STEP & DIRECTION interface.
► Compact system housed in a metallic box mounted on motor body, minimizing dimensions and optimizing wiring and mounting easiness.
► Target: distributed electronics applications requiring great dynamic performance, high reliability and compactness.
► UL/CSA certified.

HIGHLIGHTS

► Microstepping function up to 4.000 step/rev.
► Communication by means of STEP & DIRECTION interface.
► Electronic resonance damping circuit to ensure acoustic noise and mechanic vibrations reduction at low speed.
► Available with three motor sizes NEMA 34 -[] 86 mm. (1, 2 and 3 stack). It is ideal for distributed electronics applications.

TECHNICAL SPECIFICATIONS

► Range of operating voltages: 32-75 VDC.
► Microstepping: 400, 800, 1.600, 3.200 and 500, 1.000, 2.000, 4.000 steps /revolution. Setting by means of a rotatory dip-switch.
► Automatic current reduction at motor standstill.
vProtections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection.
vElectronic resonance damping circuit to ensure acoustic noise and mechanic vibrations reduction at low speed.
► Optoinsulated inputs and outputs.
► High efficiency CHOPPER with MOSFET final stage output.
► UL/CSA certified.
