Did you know that...
a simple pairing can make a big difference in the field of automation?

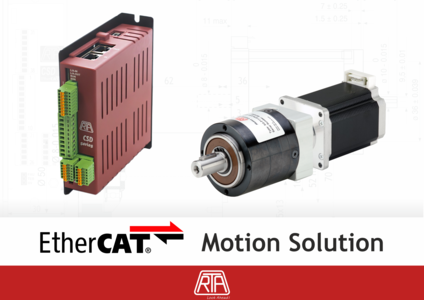

We are talking about the synthesis of our
- CSD ET S8 drive - range of operative voltage from 24 to 85 V
- 103-H7826 Nema 24 4-stack stepper motor
- 1-stage planetary gearbox
A winning trio for those seeking precision, reliability and full motion control - capable of replacing a 1-stack Nema 34 solution.
This configuration is a blend of mechatronic intelligence:
- The stepper drive CSD ET S8, with native EtherCAT interface, supports real-time control, advanced features such as Auto-Sync (loop closure), Touch Probe, and full management via bus - not to mention the wide range of motor phase current configuration.
- The stepper motor 103-H7826, powered at 6 Amps, provides torque up to 3 Nm - perfect for challenging applications where force and precision must coexist.
- The gearbox amplifies torque, improves resolution and makes the system more stable and controllable even in vertical axes or under high loads.
The result?
A compact, scalable solution perfect for lightweight CNC machines, robotics, pick & place, packaging, precision automation.
Made by RTA, with all the experience of over 45 years in motion control.ontrol.
Discover more: contact us
