RIDUTTORI PER MOTORI STEPPER






100x100!_p12-040-005

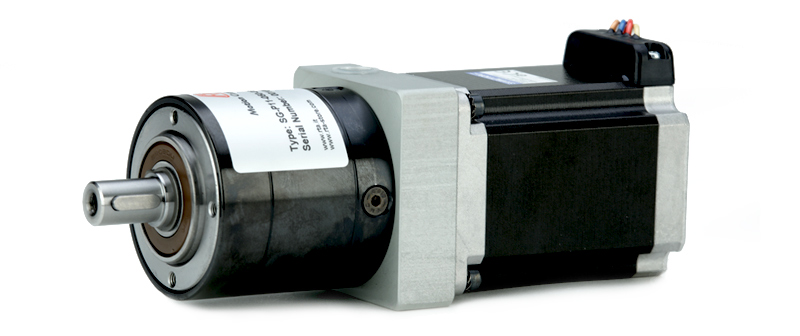

RIDUTTORI PER MOTORI STEPPER SERIE SG

Nome Modello Corpo riduttore (mm.) Rapporto di riduzione Velocità massima (min-1) Gioco (arcmin) Coppia di emergenza (Nm) Motori accoppiabili (Dimensioni flangia)
SG-P12-040-005-15-HH-52XX-00000 40 i=05 5000 15" 30 NEMA 17
SG-P12-040-010-15-HH-52XX-00000 40 i=10 5000 15" 25 NEMA 17
SG-P12-040-025-19-HH-52XX-00000 40 i=25 5000 19" 30 NEMA 17
SG-P11-050-003-12-HH-7826-00000 55 i=03 4000 12' 28 60 mm.
SG-P11-050-003-12-HH-712X-00000 55 i=03 4000 12' 28 NEMA 23
SG-P11-050-003-12-HH-782X-00000 55 i=03 4000 12' 28 60 mm.
SG-P11-050-005-12-HH-712X-00000 55 i=05 5000 12' 30 NEMA 23
SG-P11-050-005-12-HH-782X-00000 55 i=05 5000 12' 30 60 mm.
SG-P11-050-005-12-SM-2861-00000 55 i=05 5000 12' 30 NEMA 34
SG-P11-050-009-12-HH-712X-00000 55 i=09 6000 12' 28 NEMA 23
SG-P11-070-003-12-SM-286X-00000 70 i=03 4000 12' 60 NEMA 34
SG-P11-070-005-12-SM-286X-00000 70 i=05 5000 12' 70 NEMA 34
SG-P11-070-010-12-HH-782X-00000 70 i=10 6000 12' 60 60 mm.
SG-P11-070-010-12-SM-2861-00000 70 i=10 6000 12' 60 NEMA 34
SG-P11-090-010-12-SM-286X-00000 90 i=10 6000 12' 150 NEMA 34
SG-P11-090-025-15-SM-2861-00000 90 i=25 4500 15' 160 NEMA 34
