PLANETARY GEARBOXES SG SERIES


RTA presents in exclusive the new range of planetary gearboxes SG series that combine high performance with optimal reliability
and represent a perfect PLUG AND GO solution with stepper and servo motors SANYO DENKI.
TECHNICAL SPECIFICATIONS:


  • A wide range always available in stock at RTA

  • Professional assembly and testing conducted in RTA to stepper and servo motors SANYO DENKI

  • Excellent radial and axial load carrying capacity

  • Low noise

  • High precision

  • High nominal and accelerants torque

  • IP64 protection degree


100x100!_550x200_712x

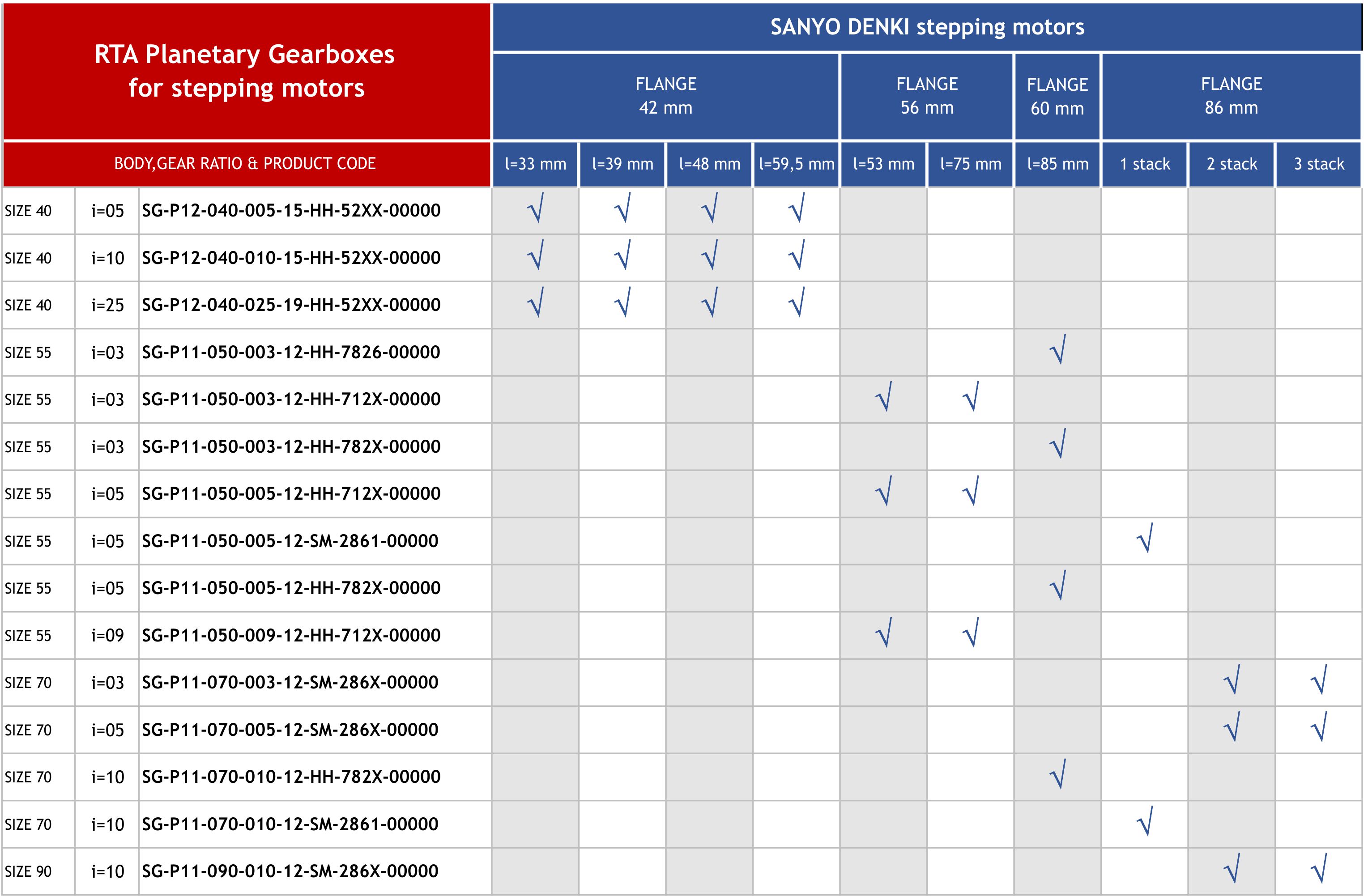

PLANETARY GEARBOXES FOR STEPPING MOTORS

Model Name Gearbox body (mm.) Gear ratio Maximum velocity (min-1) Backlash (arcmin) Emergency torque (Nm) Motor coupling (Flange size)
SG-P11-050-003-12-HH-712X-00000 60 i=03 4000 12' 28 NEMA 23
SG-P11-050-003-12-HH-782X-00000 60 i=03 4000 12' 28 60 mm.
SG-P11-070-003-12-SM-286X-00000 85 i=03 4000 12' 60 NEMA 34
SG-P11-050-005-12-HH-712X-00000 60 i=05 5000 12' 30 NEMA 23
SG-P11-050-005-12-HH-782X-00000 60 i=05 5000 12' 30 60 mm.
SG-P11-050-005-12-SM-2861-00000 85 i=05 5000 12' 30 NEMA 34
SG-P11-070-005-12-SM-286X-00000 85 i=05 5000 12' 70 NEMA 34
SG-P11-050-009-12-HH-712X-00000 60 i=09 6000 12' 28 NEMA 23
SG-P11-070-010-12-HH-782X-00000 60 i=10 6000 12' 60 60 mm.
SG-P11-070-010-12-SM-2861-00000 85 i=10 6000 12' 60 NEMA 34
SG-P11-090-010-12-SM-286X-00000 85 i=10 6000 12' 150 NEMA 34
100x100!_img_3

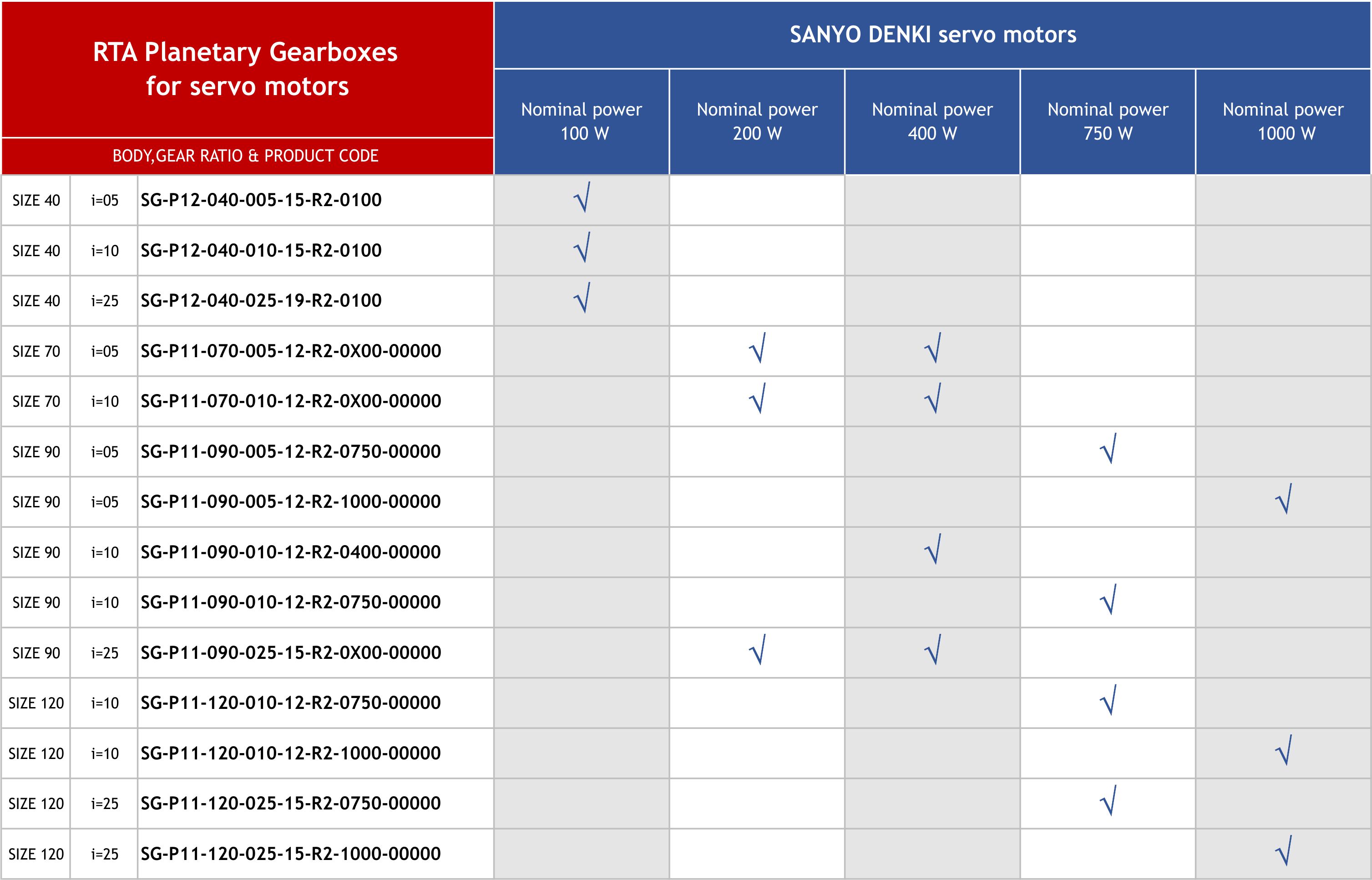

PLANETARY GEARBOXES FOR SERVO MOTORS

Model Name Gearbox body (mm.) Gear ratio Maximum velocity (min-1) Backlash (arcmin) Emergency torque (Nm) Motor coupling (Flange size)
SG-P11-070-005-12-R2-0X00-00000 60 i=05 5000 12' 70 60 mm.
SG-P11-090-005-12-R2-0750-00000 80 i=05 4500 12' 160 80 mm.
SG-P11-090-005-12-R2-1000-00000 90 i=05 4500 12' 160 100 mm.
SG-P11-070-010-12-R2-0X00-00000 60 i=10 6000 12' 60 60 mm.
SG-P11-090-010-12-R2-0400-00000 80 i=10 6000 12' 150 60 mm.
SG-P11-090-010-12-R2-0750-00000 80 i=10 6000 12' 150 80 mm.
SG-P11-120-010-12-R2-0750-00000 80 i=10 6000 12' 150 80 mm.
SG-P11-120-010-12-R2-1000-00000 100 i=10 5000 12' 300 100 mm.
SG-P11-090-025-15-R2-0X00-00000 80 i=25 4000 12' 160 60 mm.
SG-P11-120-025-15-R2-0750-00000 100 i=25 4500 12' 360 80 mm.
SG-P11-120-025-15-R2-1000-00000 100 i=25 4500 12' 360 100 mm.
